Axol Part Preparation

active4 steps

Gate G1 – Part Prep: all parts inspected, threads chased, edges deburred, tabs removed before the build starts. Tools: alcohol pads, paint pen, file. Source: Notion – Axol Assembly Instructions (migrated 2026-07-14)

1

Step 1

Grippers: remove sticker and clean residue with an alcohol pad. Remove the EndCap. Secure the back panel with 8x FH-TX-M2.5-10 on the Left and Right Gripper.

edit step
2

Step 2

Motors: test and validate motors and assign CAN IDs. DAMIAO: remove sticker.

edit step
3

Step 3

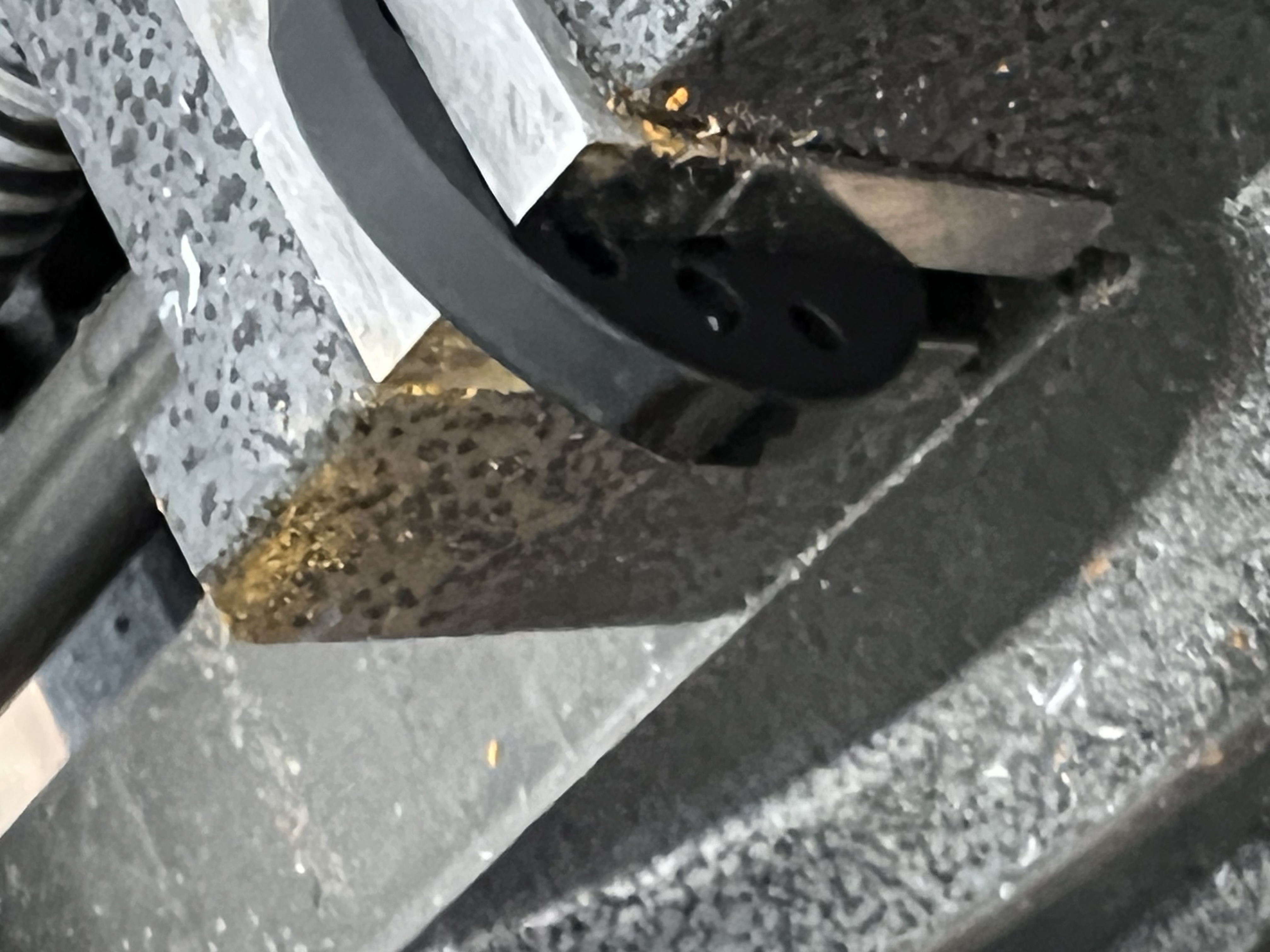

Couplers & Hard Stops: cut and file tabs until FLUSH.

edit step
4

Step 4

Couplers & Hard Stops: paint exposed metal with a paint pen.

edit step
+ Add step

Quality checklist

  • Tab has no protrusions and feels smooth to the touch
  • All parts inspected, threads chased, edges deburred, tabs removed (Gate G1)
